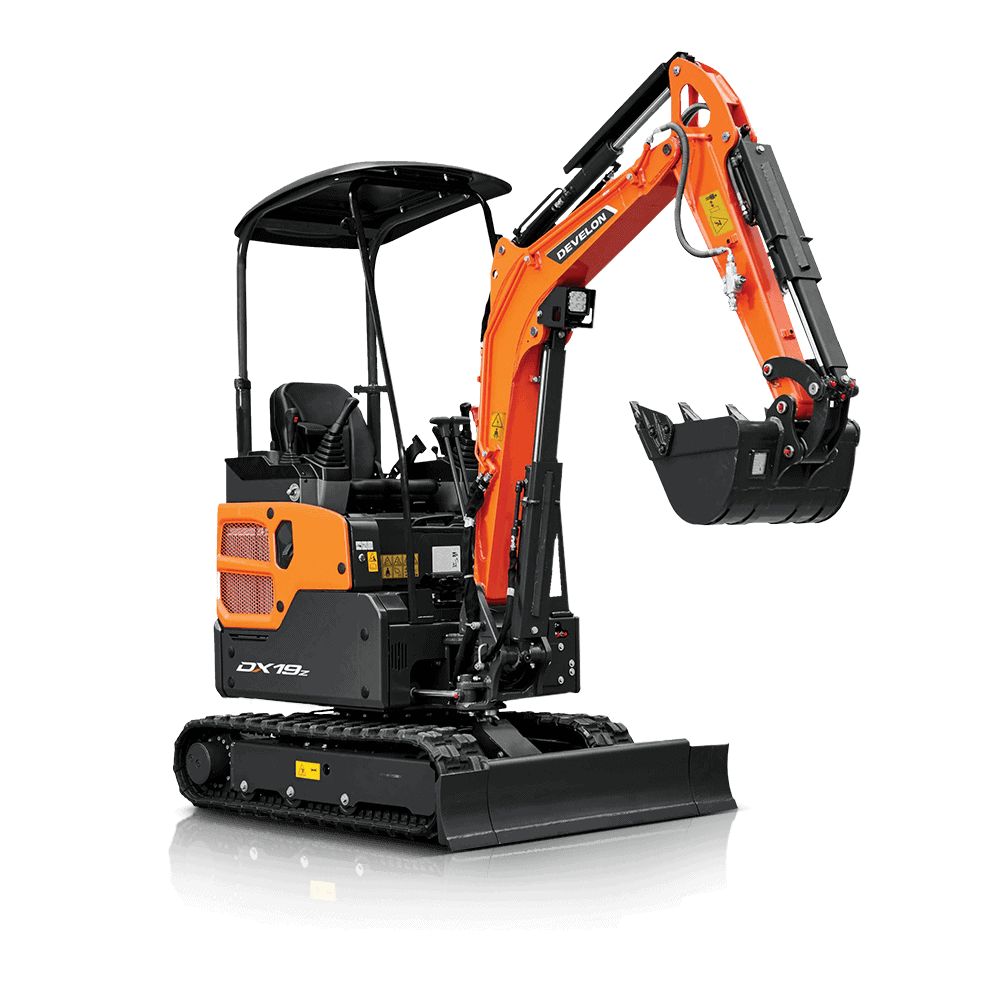

Develon DX19Z-7B Mini Excavator

The Develon DX19Z-7B gives you more digging capability while keeping the compact dimensions needed for restricted-access work.

Weighing 1,995 kg and measuring just 950 mm wide, this mini excavator is a strong option for contractors working on residential, commercial and utility projects throughout Adelaide and South Australia.

Its zero tail swing design allows the operator to work confidently in confined areas and close to buildings, fences and other structures without the rear of the excavator extending beyond the tracks.

Built for Everyday Contracting Work

The DX19Z-7B combines a compact footprint with the reach and digging performance required for a wide variety of jobs.

It’s well suited to:

• Residential and commercial construction
• Plumbing and drainage
• Electrical and utility trenching
• Landscaping and site preparation
• Footings and foundation work
• Tight-access excavation
• Property and civil maintenance

With a maximum digging depth of 2,180 mm and reach of up to 3,810 mm, the DX19Z-7B provides plenty of working range for a machine in this compact class.

Yanmar Powered Performance

At the heart of the DX19Z-7B is the proven Yanmar 3TNV70 diesel engine, producing 10.3 kW at 2,200 rpm.

The combination of responsive hydraulics, compact dimensions and a 0.05 m³ bucket capacity makes it a practical machine for operators who regularly move between different types of work.

Compact Where It Counts

At only 950 mm wide, the DX19Z-7B can access areas that are simply off limits to larger excavators.

Its compact size and zero tail swing are particularly useful on established Adelaide properties and construction sites where you’re often working between buildings, boundary fences and existing infrastructure.

Mini Excavator for Sale Adelaide

If you’re looking for a mini excavator for sale in Adelaide, the Develon DX19Z-7B offers a useful step up in capability without moving to a significantly larger machine.

Available from BPF Equipment in Adelaide, the DX19Z-7B is backed by local parts, servicing and equipment support.

Develon DX19Z-7B Specifications

Feature	Specification
Operating Weight	1,995 kg
Engine	Yanmar 3TNV70
Engine Power	10.3 kW (14 PS) @ 2,200 rpm
Travel Speed	2.0 – 3.7 km/h
Maximum Digging Reach	3,810 mm
Maximum Digging Depth	2,180 mm
Maximum Digging Height	3,680 mm
Overall Length	3,476 mm
Overall Width	950 mm
Overall Height	1,255 mm
Bucket Capacity	0.05 m³

Talk to BPF Equipment

Interested in the Develon DX19Z-7B in Adelaide? Contact BPF Equipment for pricing, availability and advice on choosing the right Develon mini excavator for your business.
