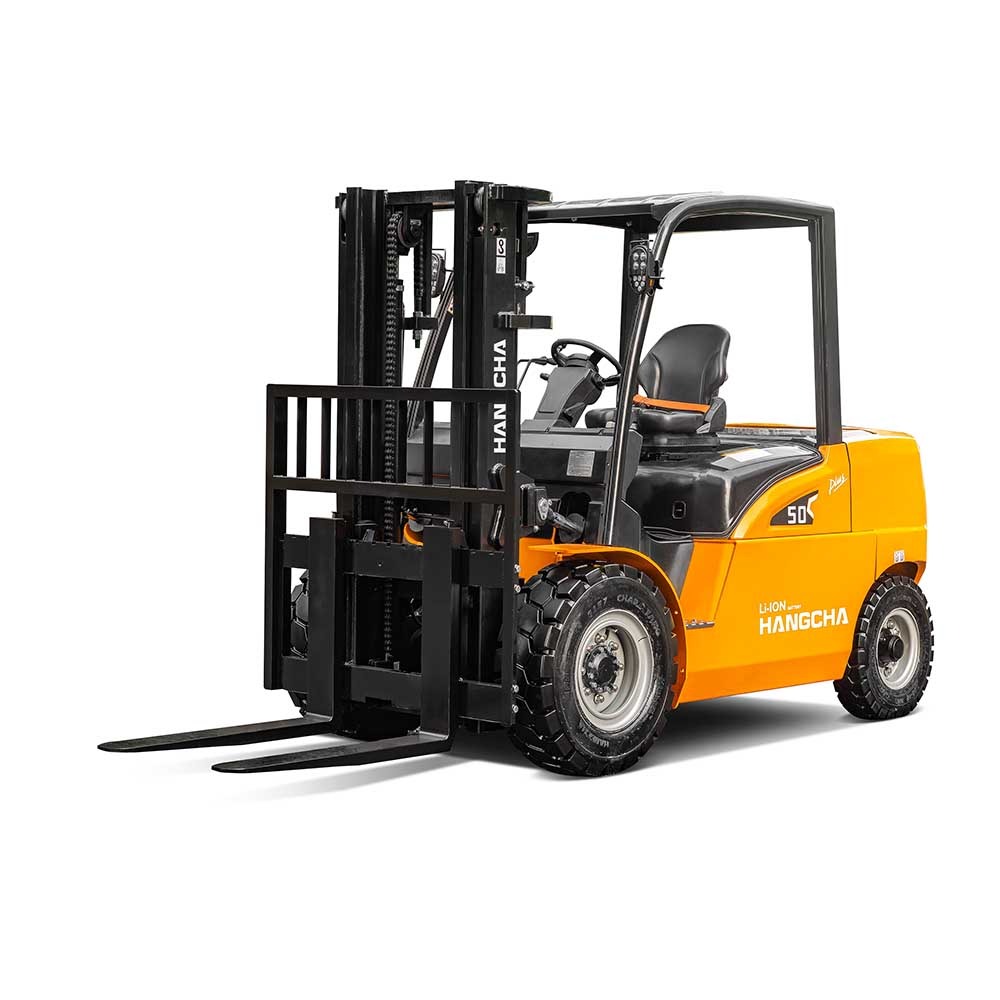

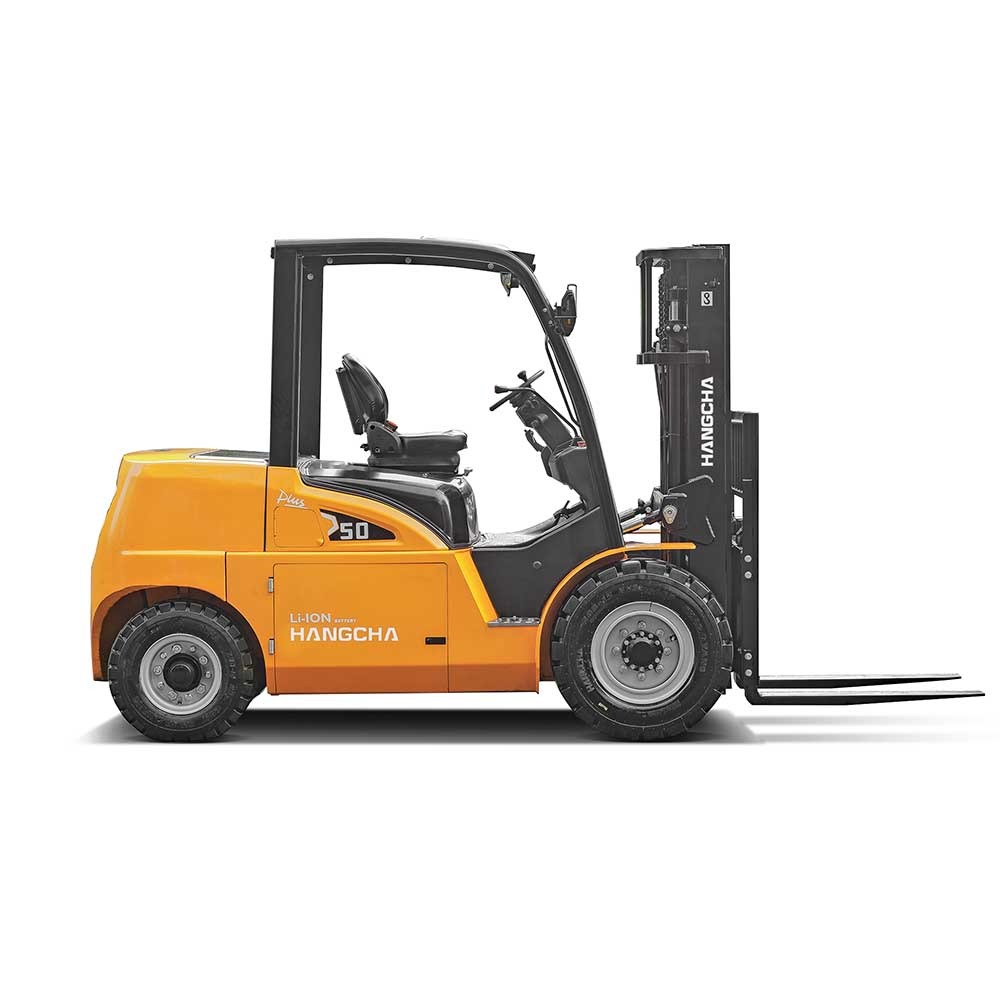

Hangcha 4-5T XH Series Heavy-duty Forklift Truck
Hangcha 4.0–5.0T XH Series Heavy-Duty Lithium Forklift – built for extreme environments with dual water-cooling and fire-protected CATL batteries.
Request a quote for: Hangcha 4-5T XH Series Heavy-duty Forklift Truck
More information about Hangcha 4-5T XH Series Heavy-duty Forklift Truck
The Hangcha 4.0–5.0T XH Series is a heavy-duty high-voltage lithium battery forklift built for the toughest applications. Inheriting the robust performance of the XH lineup, it integrates a CATL standard lithium battery box with industry-first dual water-cooling for both motor and battery, ensuring superior heat dissipation and 24/7 continuous operation. Designed for extreme environments, this forklift performs reliably in sealed, high-temperature conditions such as ship cabins and smelting furnaces—even at ambient temperatures up to 50°C.
Features
-
-
Vehicle-grade PMSM motors paired with a high-speed ratio gearbox deliver faster lifting, better acceleration, and greater climbing ability than IC models.
-
High-voltage interlocks, insulation monitoring, and MSD one-click power-down switch enhance safety during operation and maintenance.
-
CATL lithium batteries feature built-in automatic fire extinguishing systems, boosting operational safety.
-
Water-cooling system maintains the battery at 30°C for longer life and efficiency. Ventilation openings further improve cooling during intensive use.
-
Classic XC-inspired design with a smooth, compact body combining modern looks with rugged durability.
-
IPX4-rated sealed body, IP67-rated motors, electronics, and high-voltage components provide protection in wet or dusty conditions.
-
IC-grade axles, steering systems, and tyres enable reliable performance in heavy rain, cold storage, and waterlogged environments.
-
Wide-visibility cab with ergonomic layout, large workspace, and multi-function colour display supporting three drive modes and multilingual interface.
-
Specifications
| Load Capacity | 4,000–5,000 kg |
| Lift Height | 2,500–7,000 mm |
| Service Weight | 4,000–5,000 kg |
| Dimensions (L/W/H) | 4,135–4,335 × 1,925 × 2,300 mm |
| Turning Radius | 2,730 mm |
| Gradeability | 25% |
| Travel Speed | 24–25 km/h |
| Battery Voltage (STD) | 348V / 173Ah |
| Product Type | E-Trucks, Lithium E-Trucks |
Applications
The XH 4.0–5.0T Series is purpose-built for heavy-duty industries such as steel, smelting, ports, and manufacturing. With its extreme-environment capability, fire-protected lithium system, and continuous-operation design, it is the perfect zero-emission replacement for IC forklifts in South Australia.
