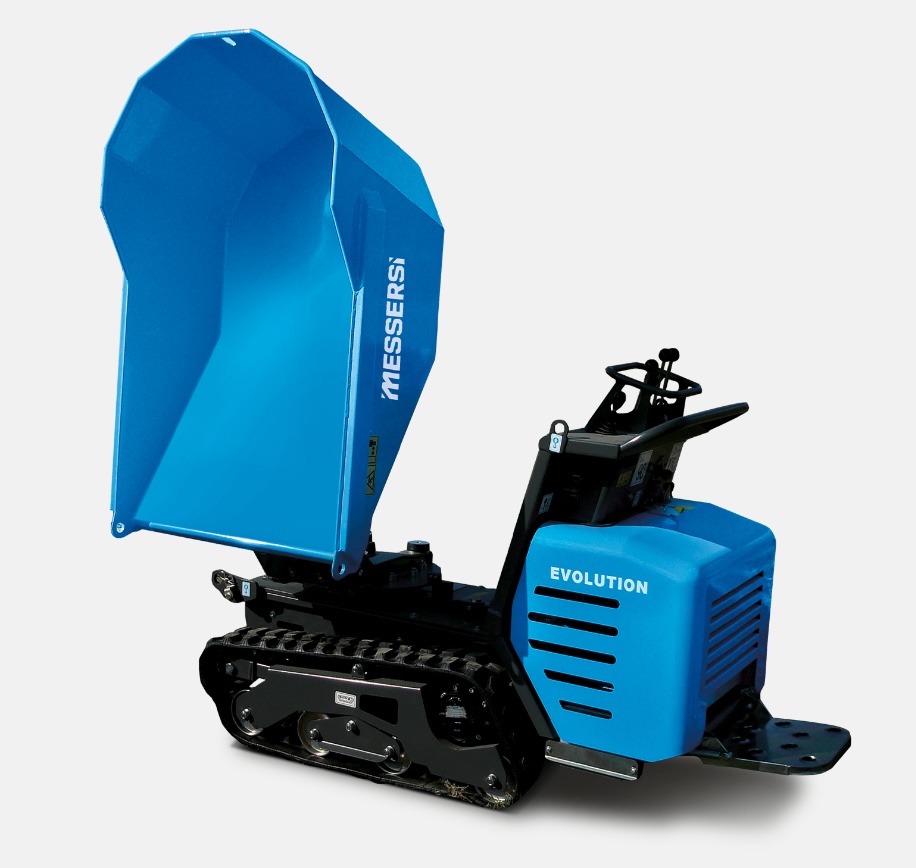

Messersi TC100D Mini Track Dumper

The Messersi TC100D Mini Track Dumper packs a full 1,000 kg carrying capacity into a machine that’s only 800 mm wide, making it ideal for moving serious loads through narrow and difficult access areas.

Powered by a 9.6 kW twin-cylinder diesel engine, the TC100D is well suited to construction, landscaping, earthmoving, demolition and civil work where traction and manoeuvrability are just as important as carrying capacity.

One of the TC100D’s standout features is its tracked undercarriage with oscillating central rollers. This helps the machine travel over obstacles and uneven terrain while maintaining stability and operator comfort. Messersi’s patented rubber track layout also provides a wide contact area, helping reduce ground pressure while delivering excellent grip.

For contractors who need to move up to a tonne of material through restricted sites, the TC100D offers a strong combination of compact dimensions, diesel power and all-terrain capability.

An optional hydraulic power take-off is available, along with a three-way tipping version with 180° rotation for greater flexibility when unloading materials on site.

Available from BPF Equipment in Adelaide, with Australia-wide orders and delivery available. Call 08 8262 1000 to discuss the TC100D.

Key Specifications

Specification	TC100D
Maximum Payload	1,000 kg
Engine Power	9.6 kW
Machine Width	800 mm
Fuel Type	Diesel

TC100D Features

• Hydrostatic tracked undercarriage with oscillating rollers through the central track area to help negotiate obstacles and uneven ground.
• Patented rubber track layout provides a wide ground contact area for low ground pressure, stability and comfortable travel.
• Twin-cylinder diesel engine with electric start.
• Hydrostatic transmission with two variable-flow pumps and two orbital motors for smooth, controlled operation.
• Compact 800 mm width allows access to narrow pathways and confined worksites.
• Impressive 1,000 kg maximum payload from a compact machine.

Options

• Double-acting hydraulic power take-off (PTO) with a maximum flow of 28 L/min and operating pressure of 155 bar.
• Three-way tipping version available, providing up to 180° tipping movement for greater flexibility when unloading.
